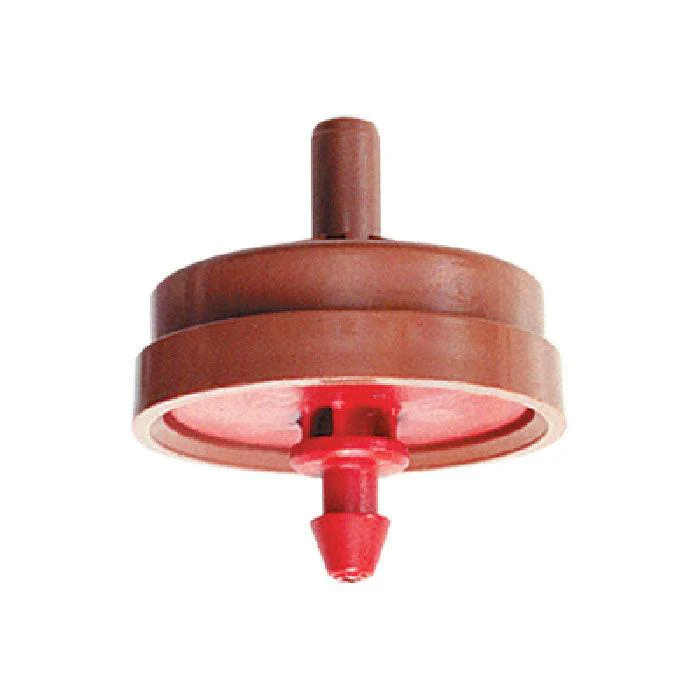

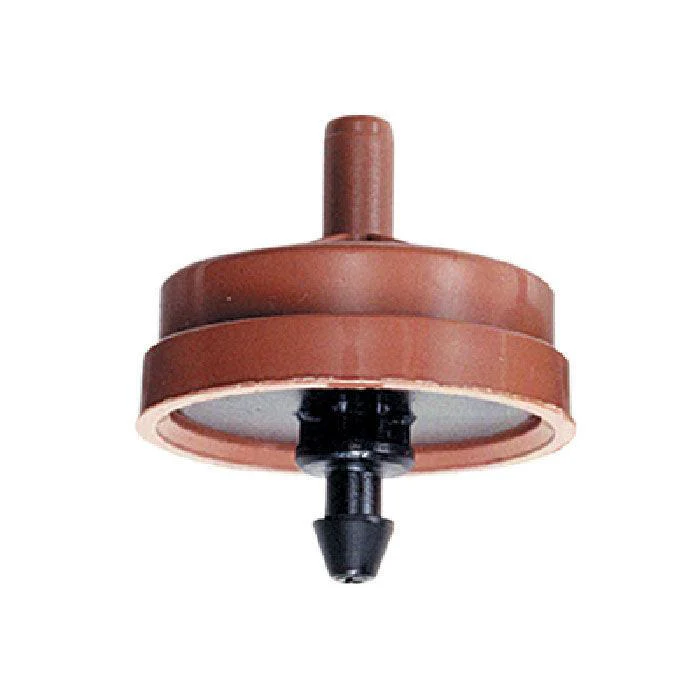

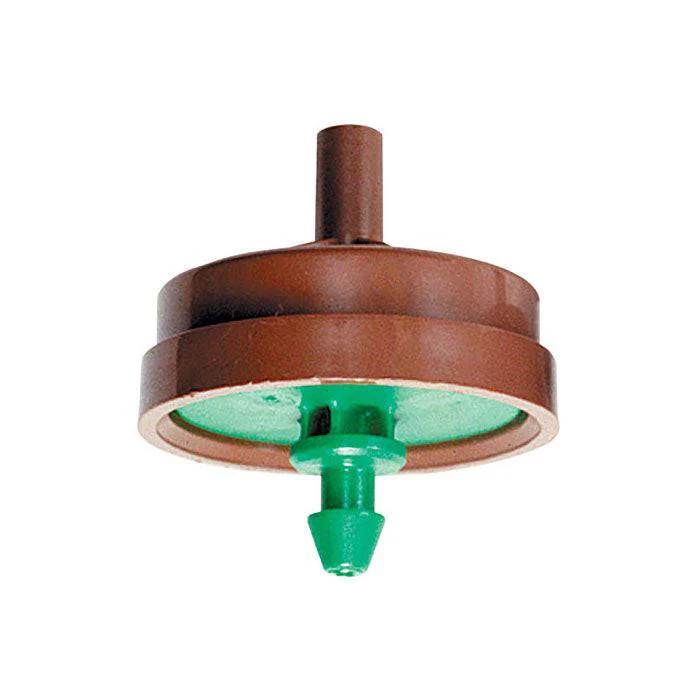

Netafim Techflow Pressure Compensating Emitter with Nipple Outlet
Techflow Emitter
The unique design of the Netafim Techflow Emitters regulates flow and provides continuous self-cleaning action during operation. These emitters have a 2.2 PSI internal check valve that helps prevent low emitter drainage holding back up to a 5 ft column of water. The anti-siphon operation prevents contaminants from being drawn into the emitter. The Techflow Emitters are pressure compensating and deliver the same flow from 14.5 to 58 PSI.
Applications
- For use with systems with a wide range of pressure variations (14.5 to 58 psi)
- Install on-surface or subsurface
- Wide range of plant spacings
- Hanging baskets, flower baskets, pots, interiorscapes
Specifications
| Flow Rates | 1.0 and 2.0 GPH |
|---|---|
| Pressure compensation range | 14.5 to 58 psi |
| Maximum pressure | 58 PSI |
| Barb size | Inlet 0.160ā - 0.170ā Outlet 0.160ā |
| Recommended minimum filtration | 120 mesh |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Netafim Techflow Pressure Compensating Emitter with Nipple Outlet
Netafim Techflow Pressure Compensating Emitter with Nipple Outlet
Techflow Emitter
The unique design of the Netafim Techflow Emitters regulates flow and provides continuous self-cleaning action during operation. These emitters have a 2.2 PSI internal check valve that helps prevent low emitter drainage holding back up to a 5 ft column of water. The anti-siphon operation prevents contaminants from being drawn into the emitter. The Techflow Emitters are pressure compensating and deliver the same flow from 14.5 to 58 PSI.
Applications
- For use with systems with a wide range of pressure variations (14.5 to 58 psi)
- Install on-surface or subsurface
- Wide range of plant spacings
- Hanging baskets, flower baskets, pots, interiorscapes
Specifications
| Flow Rates | 1.0 and 2.0 GPH |
|---|---|
| Pressure compensation range | 14.5 to 58 psi |
| Maximum pressure | 58 PSI |
| Barb size | Inlet 0.160ā - 0.170ā Outlet 0.160ā |
| Recommended minimum filtration | 120 mesh |
